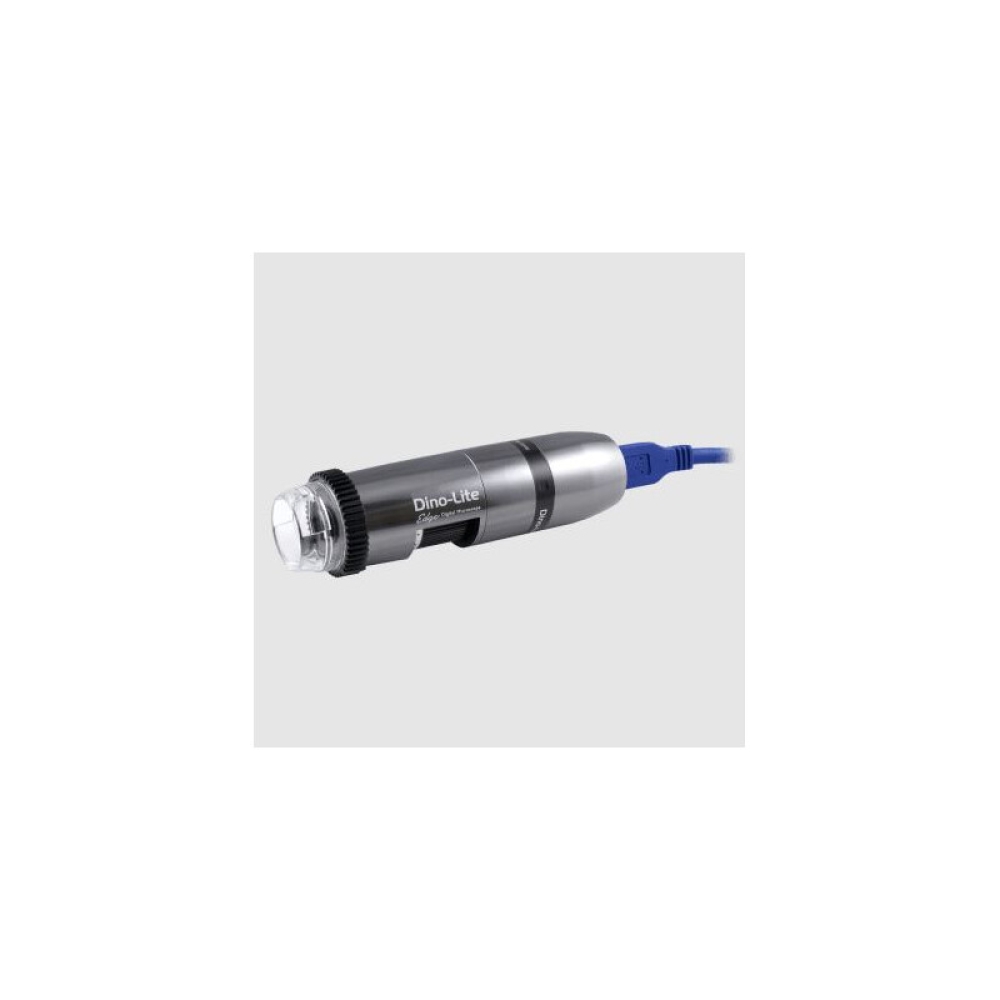

Dino-Lite AM73915MZT

The Dino-Lite AM73915MZT is part of the High Speed Real Time series with USB 3.0 connection. It offers excellent uncompressed image quality and colour reproduction in a robust, compact and attractive metal housing. USB 3.0 adds a new transfer mode called "SuperSpeed", which can transfer data at up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS (frames per second) at a resolution of 1280 x 960. With SuperSpeed, you can take advantage of the full optical performance of the Dino-Lite Edge series, including improved colour accuracy and image quality.

EDOF allows users to automatically capture multiple images at different depths and combine them automatically into a clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with a greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and saved with the captured image, simplifying the measurement process.

The AM73915MZT is one of the high-end Dino-Lite products and the top-level product in the Dino-Lite USB 3.0 series. For professionals who are looking for high-speed data transfer and the best image quality available and want even more advanced features, this is the model of choice.

The Dino-Lite AM73915MZT is a USB 3.0 model with a magnification range of 10x - 220x and a standard working distance of up to 6 cm. This model is part of the Dino-Lite Edge family with the latest innovative optics, an unmatched 5-megapixel sensor and several special features such as Extended Depth of Field (EDOF), Enhanced Dynamic Range (EDR), Automatic Magnification Reading (AMR), Flexible LED Control (FLC), built-in polarisation filter, full metal body, extensive measurement functions, calibration, interchangeable front caps and much more.

*EDOF/EDR only works under Windows OS.

Specifications

Light

• Light/ LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut filter >650 nm
• Diffuser available: Yes (N3C-D included)
• Emission filter: No
• Polariser: Yes, linear

Optics

• Magnification: 10-220x
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5 megapixels (2592x1944)
• Maximum frame rate: 45fps (max 20fps video recording)

Compatibility

• Interface: USB 3.0, cable included**
• Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and above
• Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• Wi-Fi: No

Housing

• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 11.9 cm (L) x 3.3 cm (H)
• Weight: 110g
• Cable length: 1.8m

Features

• Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC).
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes

Information

• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-O- Open cap, N3C-C- Closed cap, N3C-DDiffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap

Note **Dino-Lite USB 3.0 models use a custom USB-A and USB-C cable that is specifically designed for Dino-Lite
