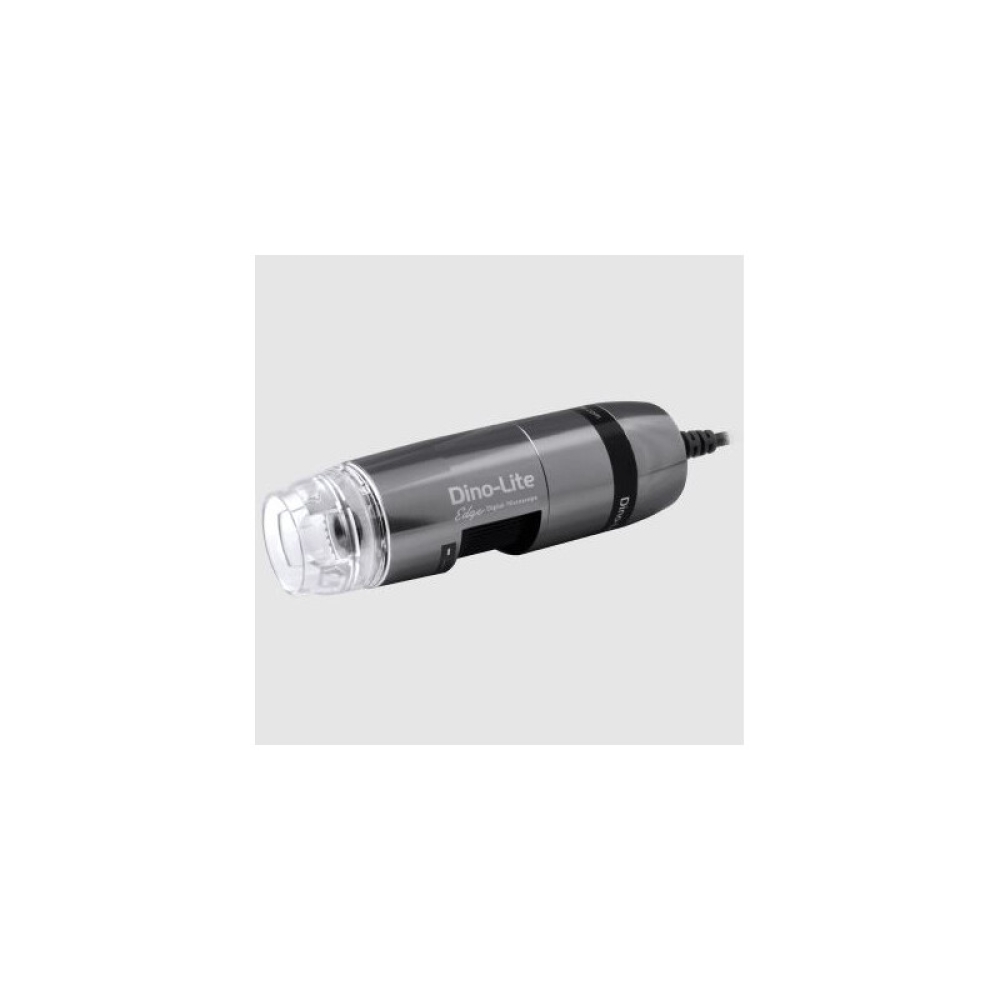

Dino-Lite AM73515MT8A

The AM73515MT8A is a 5-megapixel microscope from the Dino-Lite Edge Series USB 3.0 with a magnification range of 700x - 900x and built-in coaxial illumination. When using Flexible LED Control (FLC), this model can switch between bright field illumination and coaxial illumination or mix the two illumination types. USB 3.0 adds a new transfer mode called "SuperSpeed", which can transfer data at up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS (frames per second) at a resolution of 1280 x 960. With SuperSpeed, you can take advantage of the full optical performance of the Dino-Lite Edge series, including improved colour accuracy and image quality.

Coaxial illumination technology reveals details that are very difficult to see under normal lighting conditions, for example when inspecting wafer discs, microchips or other microelectronics. The AM73515MT8A includes theAutomated Magnification Reading (AMR) feature, which automatically detects the magnification and displays it in the included Dino-Lite software. These unique features make the Dino-Lite AM73515MT8A a great inspection tool for material analysis, electronics inspection or similar applications that require high magnification, coaxial illumination, high speed, flexibility and mobility. The Dino-Lite AM73515MT8A comes bundled with the user-friendly DinoCapture 2.0 software for Windows.

For this model, it includes features such as Automated Magnification Reading (AMR), Flexible LED Control (FLC), calibration, measurement, image capture and annotation, and video recording. When focusing at such high magnifications, it is recommended to use a high-precision tripod. The Dino-Lite RK-10A, for example, is a great addition. It is a high-quality, stable and robust tripod solution made of durable stainless steel and lightweight aluminium and offers very precise fine focusing.

Specifications

Light

• Light/ LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polariser: No

Optics

• Magnification: 700-900x
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5 megapixels (2592x1944)
• Maximum frame rate: 45fps (max 20fps video recording)

Compatibility

• Interface: USB 3.0, cable included**
• Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
• Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• Wi-Fi: No

Housing

• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 11.9 cm (L) x 3.3 cm (H)
• Weight: 110g
• Cable length: 1.8m

Features

• Special feature Automatic Magnification Reading (AMR), Flexible LED Control (FLC), Coaxial illumination
• Measurement Yes
• Calibration Yes
• Microtouch sensor Yes
• ESD safe Yes

Information

• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-C, N3C-E, N3C-O

Note **Dino-Lite USB 3.0 models use a custom USB-A and USB-C cable that is specifically designed for Dino-Lite
